FD150 & E300: Setup Instructions

E300 Setup

1. Power Connection
   • If you are looking at the E300 from the front, the power input port is located on the rear-right side of the firewall, next to the power switch.
   • Plug in the power cable and connect it to an uninterruptible power supply or UPS.
2. Ethernet Connection
   • If you are looking at the E300 from the front, the WAN port is located on the rear-left side of the firewall and is outlined in blue.
   • Plug in an ethernet cable to the WAN port and connect the other end to the source of your internet connection. For example, this could be a wall outlet behind the counter or directly into your modem, depending on how your network is set up.

FD150 Setup

1. Remove Rear Gate
   • Detach the gate from the back of the FD150 to access the ports.
2. Power Connection
   • Locate the power input on the left side of the FD150.
   • Connect the power adapter to the FD150 and plug the other end into the UPS.
3. Ethernet Connection
   • Locate the ethernet port under the rear gate area. The port is yellow and positioned between the phone line and USB ports.
   • Plug in an ethernet cable.

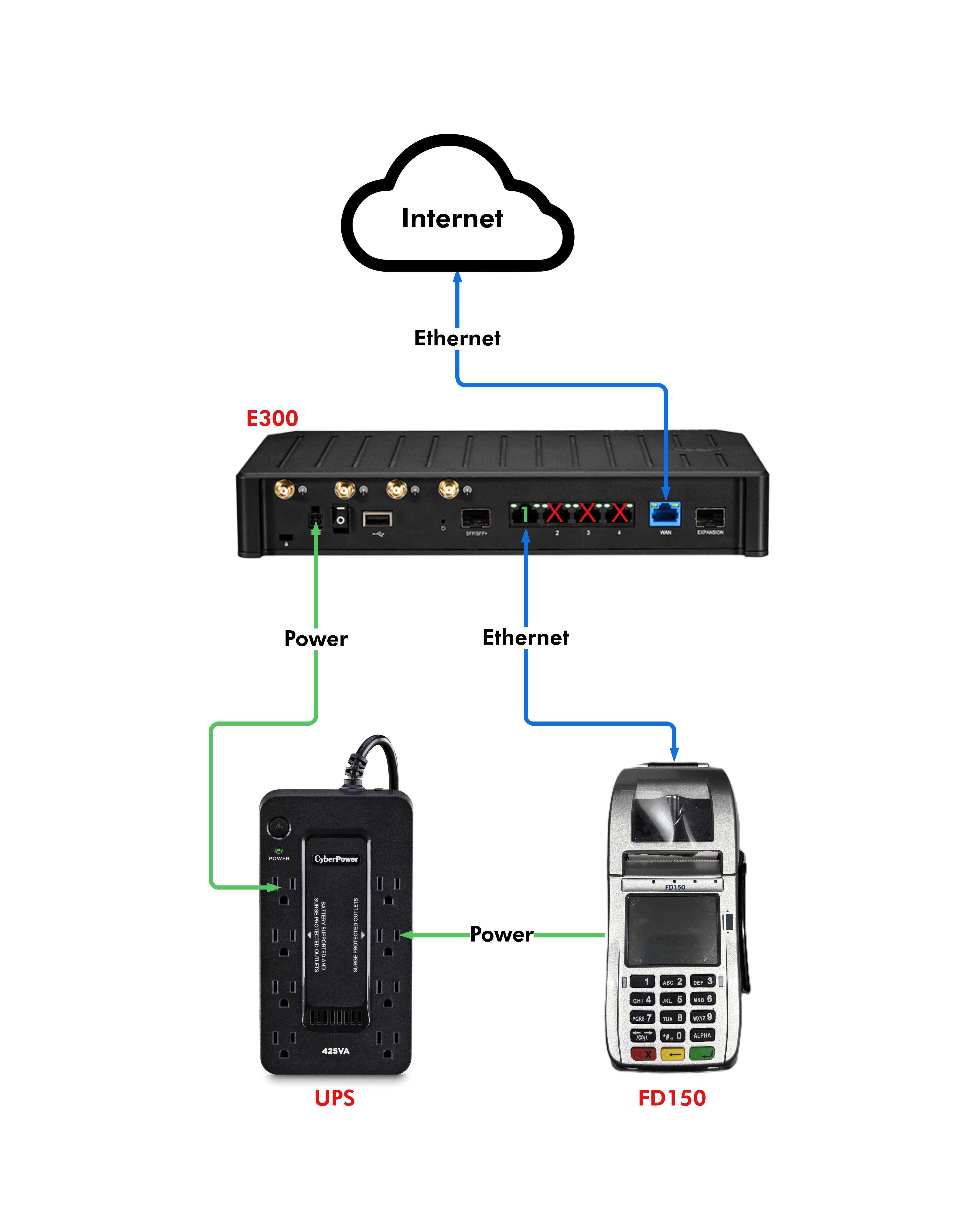

4. Connect to E300
   • Take the other end of the ethernet cable and connect it to Port 1 on the E300.

Testing the Setup

• Run a test credit transaction using different card brands.
• Run a test debit transaction using different card brands.

Important Note

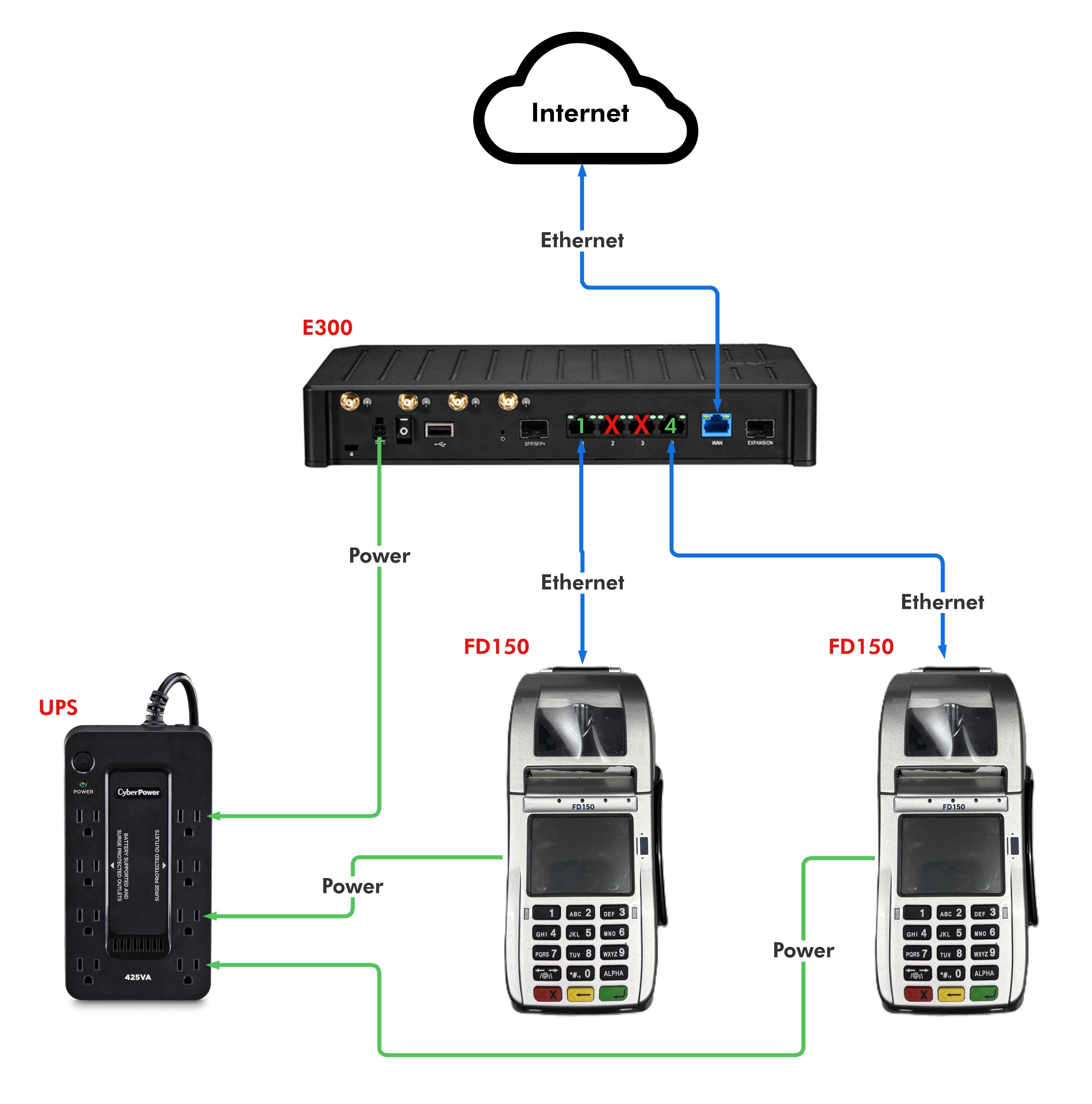

If you have more than one FD150, connect the ethernet cable for the second FD150 to Port 4.
